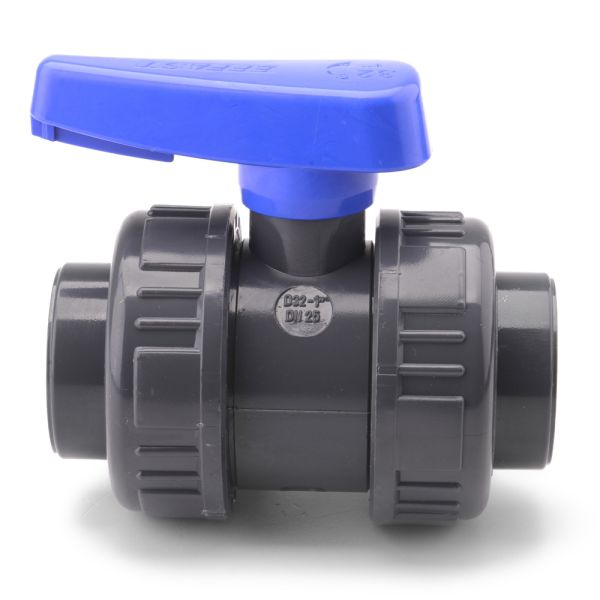

Effast 356053 PVCu Double Union Ball Valve Econ EPDM Threaded 1 1/4in

Double union ball valves are designed to allow complete removal of the valve body from a pipeline, making them ideal for applications where refurbishment, maintenance or replacement may be required. With union connections on both sides, the

Available Stock - Sittingbourne - 1
Click & Collect Option Available for stock held in Sittingbourne (ME10 3RH)

This item is available for same day despatch
if ordered before 1pm Monday to Friday.
(Excluding Bank Holidays)

£ 44.38 incl VAT

Be the first to review this product

Quantity:

Add to favourites

Authorised Reseller

Double union ball valves are designed to allow complete removal of the valve body from a pipeline, making them ideal for applications where refurbishment, maintenance or replacement may be required. With union connections on both sides, the valve can be demounted without cutting or disturbing the surrounding pipework. Manufactured from PVCu, these valves provide good chemical resistance and durability across a wide range of industrial and commercial fluid handling applications. The threaded union ends allow straightforward connection to compatible threaded pipework and fittings, offering flexibility during installation and maintenance.

A key feature of this valve is the locking end, which enables adjustment of the torque applied to the internal ball to suit operating pressure. Prior to installation, the locking end should always be checked and tightened if necessary, as insufficient torque can result in leakage. For added convenience, the valve handle can be removed and used as a spanner to tighten the locking end during assembly or adjustment. The ergonomically designed teardrop handle provides a secure grip and smooth operation, with a clear visual indication of valve position. As part of the economy range, these valves are batch tested on a 1 in 1000 basis, offering a cost-effective solution where full individual testing is not essential.

Key Features & Benefits

Double union design: Allows the valve body to be fully removed from the pipeline for maintenance or replacement.

Threaded union ends: Enable easy installation into compatible threaded pipework systems.

PVCu construction: Provides good chemical resistance and long service life in demanding environments.

Torque-adjustable locking end: Allows ball pressure to be set according to system operating pressure to reduce the risk of leaks.

Handle assisted adjustment: The Valve handle can be removed and used as a spanner to tighten the locking end.

Ergonomic handle: Teardrop-shaped handle ensures secure grip, smooth operation and clear valve position indication.

Cost-effective solution: Economy range valve with batch testing on a 1 in 1000 basis.

Wide size range: Available from 3/8" to 4" to suit a variety of threaded system requirements.

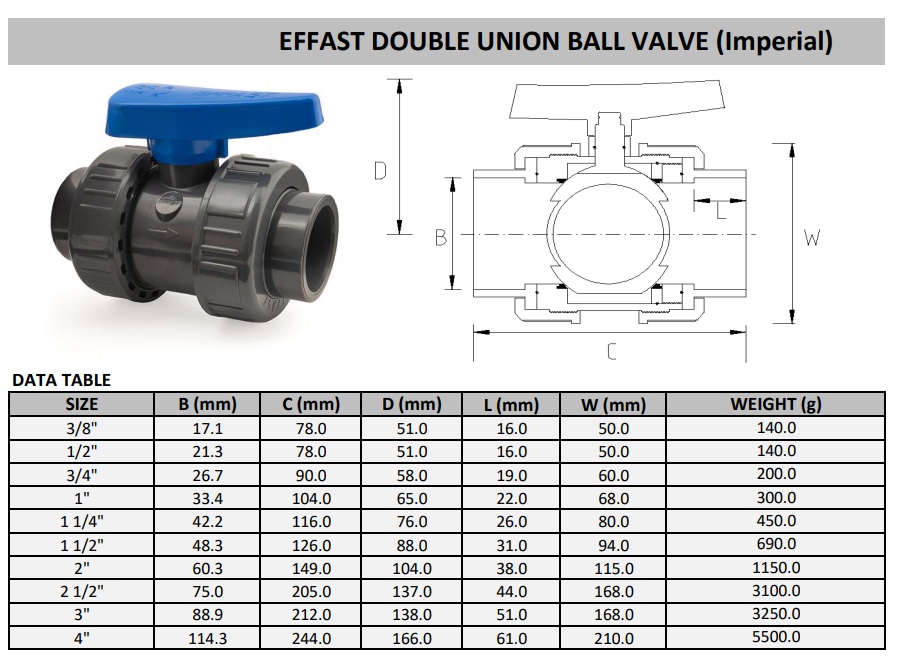

Dimensions

Larger handle supplied with sizes 2 1/2" or above.

SKU	Nominal Size (inch)	L Min (mm)	C1 (mm)	C2 (mm)	Z Max (mm)	H (mm)	E (mm)
356049	3/8	10.1	22	42	59.8	50	49
356050	1/2	13.2	22	42	53.6	50	49
356051	3/4	14.5	24	49	63	58	60
356052	1	16.8	26	59	72.4	69	69
356053	1 1/4	19.1	32	65	82.8	76	80
356054	1 1/2	19.1	40	71	91.8	92	96
356055	2	23.4	45	79	103.2	109	116
356056	2 1/2	26.7	84.5	84.5	175.6	145	167
356057	3	29.8	84.5	84.5	153.4	145	167
356058	4	61	102	102	157	170	179
